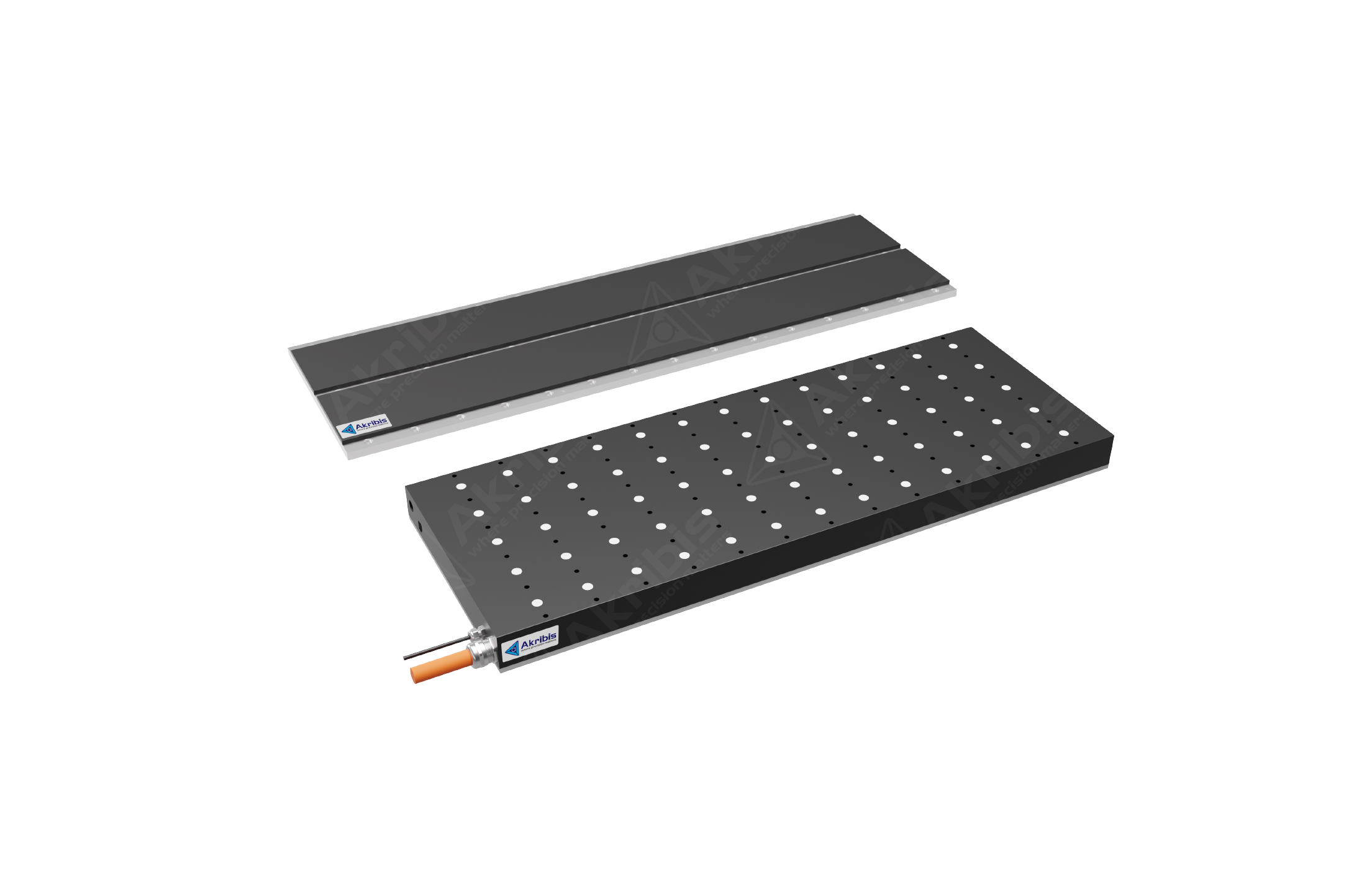

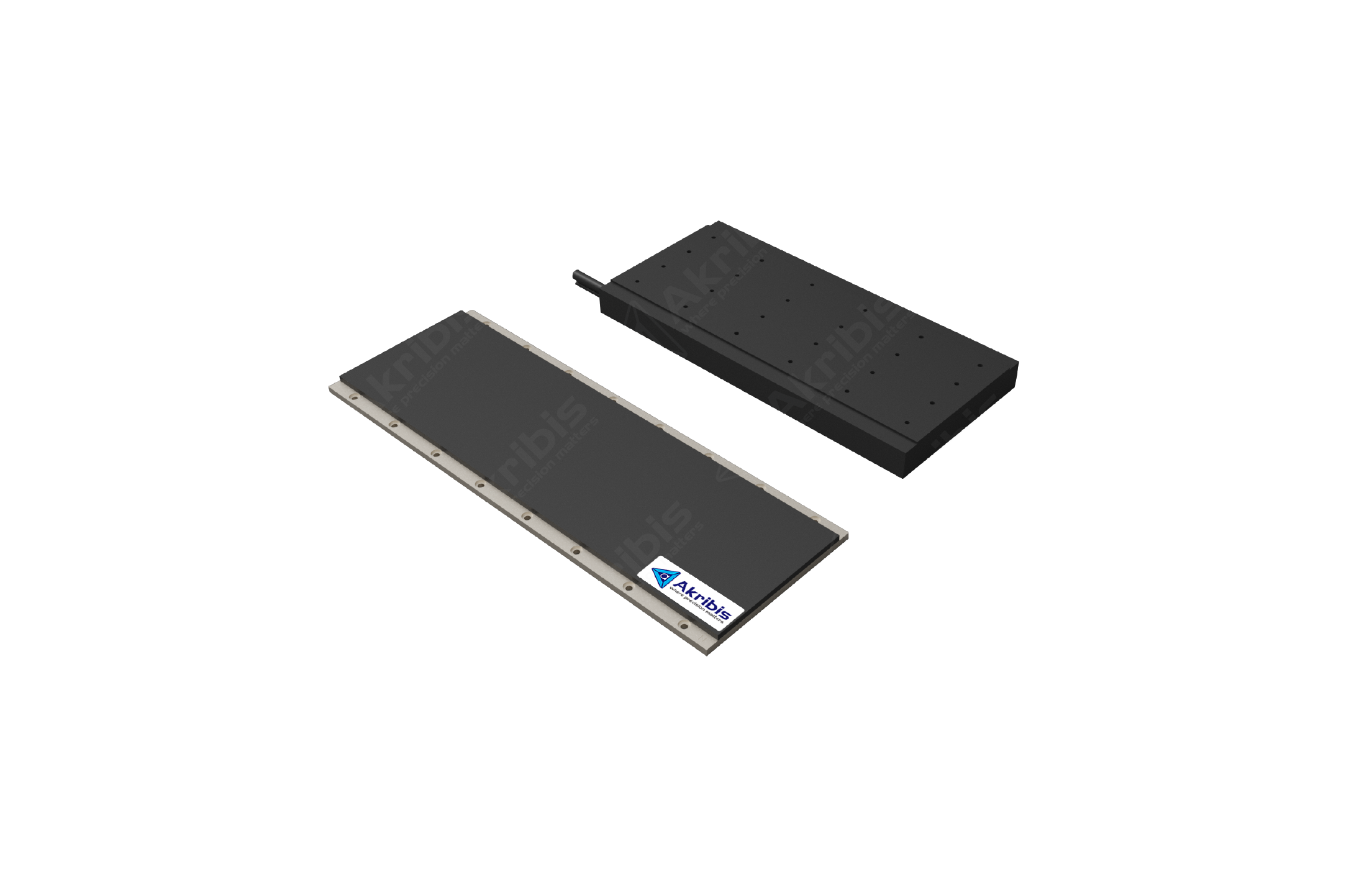

有铁芯直线电机

AKH系列

AKH系列电机体积小、推力大、高响应，水冷、自冷可选，适用于各类高速高精的自动化及机床设备。

请求报价选型与图纸下载下载参数

系列型号

系列型号	线圈长度(mm)	持续推力(N)	峰值推力(N)	电机磁轨	磁轨型号	磁轨长度“TL”(mm)	孔数“H”
AKH100-N-L-B2	232	631	2400	AKH100	TL270	270	10
AKH100-N-L-B2	232	631	2400	AKH100	TL432	432	16
AKH100-N-H-B2	232	631	2400	AKH100	TL270	270	10
AKH100-N-H-B2	232	631	2400	AKH100	TL432	432	16
AKH100-N-L-B3	340	852	3209	AKH100	TL270	270	10
AKH100-N-L-B3	340	852	3209	AKH100	TL432	432	16
AKH100-N-H-B3	340	852	3209	AKH100	TL270	270	10
AKH100-N-H-B3	340	852	3209	AKH100	TL432	432	16
AKH100-N-L-B4	448	984	4278	AKH100	TL270	270	10
AKH100-N-L-B4	448	984	4278	AKH100	TL432	432	16
AKH100-N-H-B4	448	984	4278	AKH100	TL270	270	10
AKH100-N-H-B4	448	984	4278	AKH100	TL432	432	16
AKH100-W-L-B2	263	1070	2139	AKH100	TL270	270	10
AKH100-W-L-B2	263	1070	2139	AKH100	TL432	432	16
AKH100-W-H-B2	263	1070	2139	AKH100	TL270	270	10
AKH100-W-H-B2	263	1070	2139	AKH100	TL432	432	16
AKH100-W-L-B4	479	2112	4278	AKH100	TL270	270	10
AKH100-W-L-B4	479	2112	4278	AKH100	TL432	432	16
AKH100-W-H-B4	479	2112	4278	AKH100	TL270	270	10
AKH100-W-H-B4	479	2112	4278	AKH100	TL432	432	16
AKH100-W-L-B6	695	3048	6417	AKH100	TL270	270	10
AKH100-W-L-B6	695	3048	6417	AKH100	TL432	432	16
AKH100-W-H-B6	695	3048	6417	AKH100	TL270	270	10
AKH100-W-H-B6	695	3048	6417	AKH100	TL432	432	16
AKH130-N-L-B3	340	961	4171	AKH130	TL270	270	10
AKH130-N-L-B3	340	961	4171	AKH130	TL432	432	16
AKH130-N-H-B3	340	961	4171	AKH130	TL270	270	10
AKH130-N-H-B3	340	961	4171	AKH130	TL432	432	16
AKH150-N-L-B2	232	864	3209	AKH150	TL270	270	10
AKH150-N-L-B2	232	864	3209	AKH150	TL432	432	16
AKH150-N-H-B2	232	864	3209	AKH150	TL270	270	10
AKH150-N-H-B2	232	864	3209	AKH150	TL432	432	16
AKH150-N-L-B4	448	1440	6417	AKH150	TL270	270	10
AKH150-N-L-B4	448	1440	6417	AKH150	TL432	432	16
AKH150-N-H-B4	448	1440	6417	AKH150	TL270	270	10
AKH150-N-H-B4	448	1440	6417	AKH150	TL432	432	16
AKH150-W-L-B2	263	1604	3209	AKH150	TL270	270	10
AKH150-W-L-B2	263	1604	3209	AKH150	TL432	432	16
AKH150-W-H-B2	263	1604	3209	AKH150	TL270	270	10
AKH150-W-H-B2	263	1604	3209	AKH150	TL432	432	16
AKH150-W-L-B4	479	3169	6417	AKH150	TL270	270	10
AKH150-W-L-B4	479	3169	6417	AKH150	TL432	432	16
AKH150-W-H-B4	479	3169	6417	AKH150	TL270	270	10
AKH150-W-H-B4	479	3169	6417	AKH150	TL432	432	16
AKH150-W-L-B6	695	4573	9626	AKH150	TL270	270	10
AKH150-W-L-B6	695	4573	9626	AKH150	TL432	432	16
AKH150-W-H-B6	695	4573	9626	AKH150	TL270	270	10
AKH150-W-H-B6	695	4573	9626	AKH150	TL432	432	16
AKH200-N-L-B2	232	989	4278	AKH200	TL270	270	10
AKH200-N-L-B2	232	989	4278	AKH200	TL432	432	16
AKH200-N-H-B2	232	989	4278	AKH200	TL270	270	10
AKH200-N-H-B2	232	989	4278	AKH200	TL432	432	16
AKH200-N-L-B4	448	1604	8556	AKH200	TL270	270	10
AKH200-N-L-B4	448	1604	8556	AKH200	TL432	432	16
AKH200-N-H-B4	448	1604	8556	AKH200	TL270	270	10
AKH200-N-H-B4	448	1604	8556	AKH200	TL432	432	16
AKH200-W-L-B2	263	2139	4278	AKH200	TL270	270	10
AKH200-W-L-B2	263	2139	4278	AKH200	TL432	432	16
AKH200-W-H-B2	263	2139	4278	AKH200	TL270	270	10
AKH200-W-H-B2	263	2139	4278	AKH200	TL432	432	16
AKH200-W-L-B4	479	4225	8556	AKH200	TL270	270	10
AKH200-W-L-B4	479	4225	8556	AKH200	TL432	432	16
AKH200-W-H-B4	479	4225	8556	AKH200	TL270	270	10
AKH200-W-H-B4	479	4225	8556	AKH200	TL432	432	16
AKH200-W-L-B6	695	6097	12834	AKH200	TL270	270	10
AKH200-W-L-B6	695	6097	12834	AKH200	TL432	432	16
AKH200-W-H-B6	695	6097	12834	AKH200	TL270	270	10
AKH200-W-H-B6	695	6097	12834	AKH200	TL432	432	16
